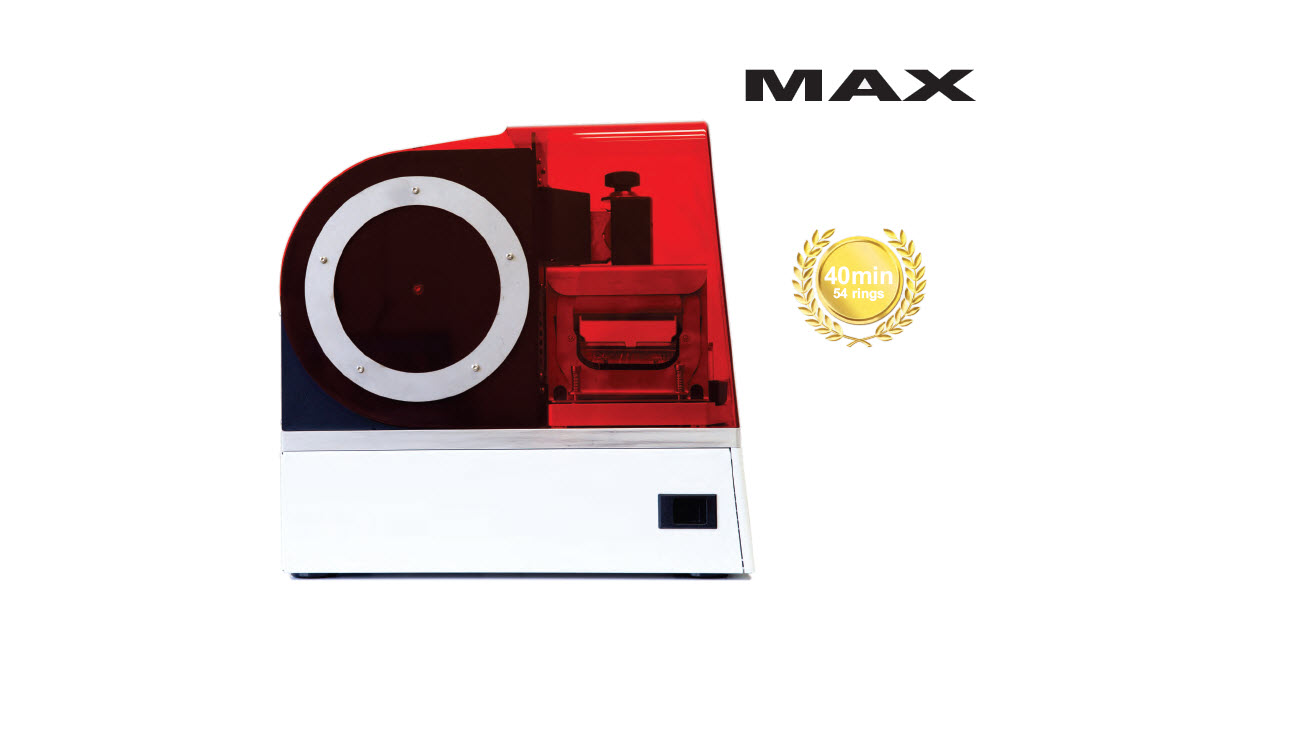

Volume production on your desktop, the MAX 3D printer offers Asiga’s largest build envelope with the delicate precision required for the production of beautiful jewellery patterns. The larger print volume allows jewellers, artists, and casting houses to produce sculptures, bangles, and large quantities of casting patterns in a single print.

Printer Performance
Print capacity: 54+ rings (size dependent)

Print speed (25-µm layers): three hours (height of tallest piece 30 mm)

Print cost (USD): $0.50 to $2 per piece (weight/material dependent)

Printer Specification
Build size (X, Y, Z): 119 x 67 x 76 mm* (4.68 x 2.63 x 3 in.)

Pixel size (X,Y): 62 µm

Z resolution: Variable in 1 µm increments

Light source: High-power 405-nm LED

Material system: Open material system

File inputs: STL, SLC, STM

Software: Asiga Composer (included)

Network compatibility: Wi-Fi, Wireless direct, Ethernet

Industry sectors: Jewellery manufacturing

System size: 260 x 380 x 370 mm (10.2 x 15 x 14.5 in.)

System weight: 16.5 kg (packaged 19 kg)

Packaged size/weight: 410 x 500 x 480 mm (18.1 x 22 x 19.7 in.)

Power: 100-240VAC, 50/60Hz, 2.0A MAX

* build envelope size may vary
